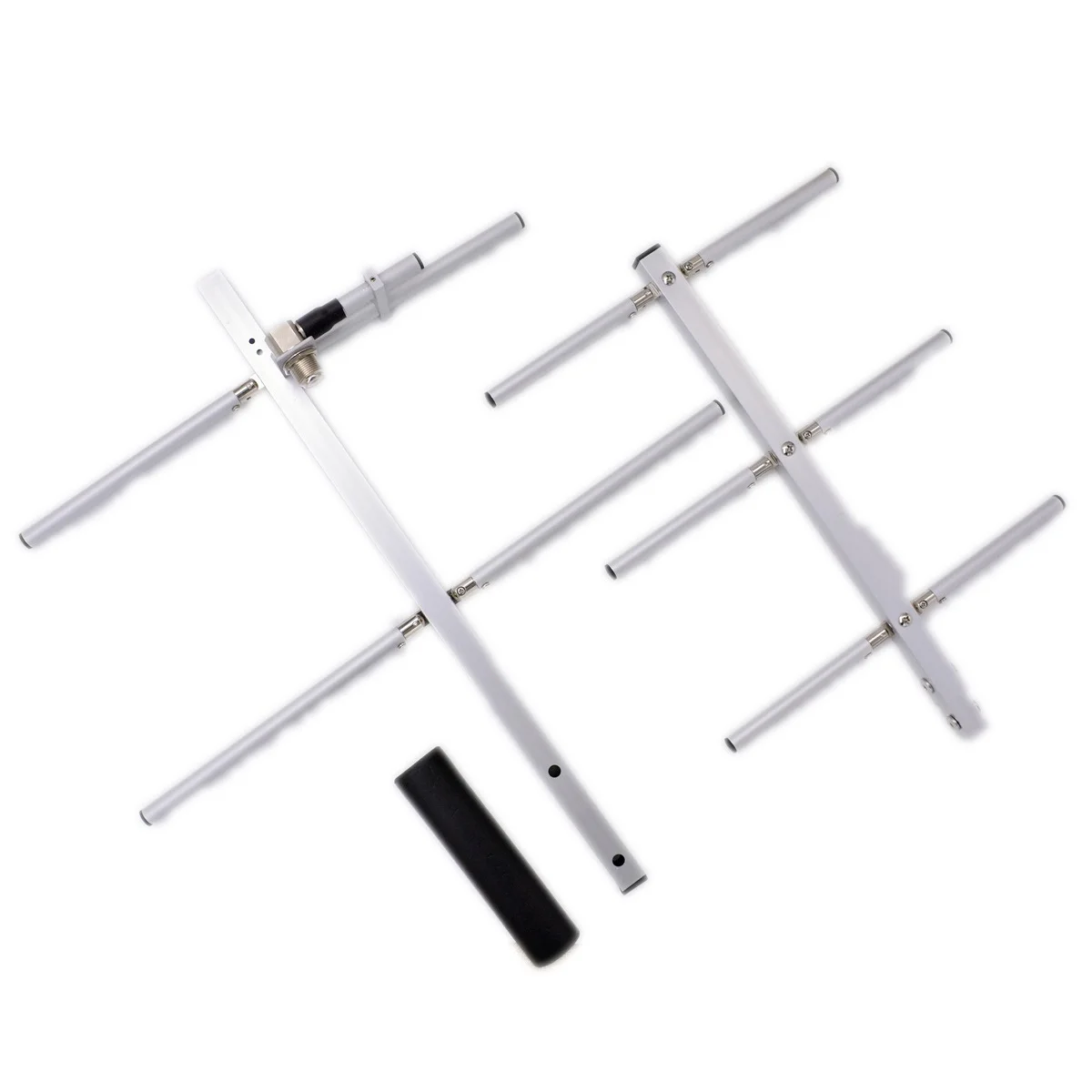

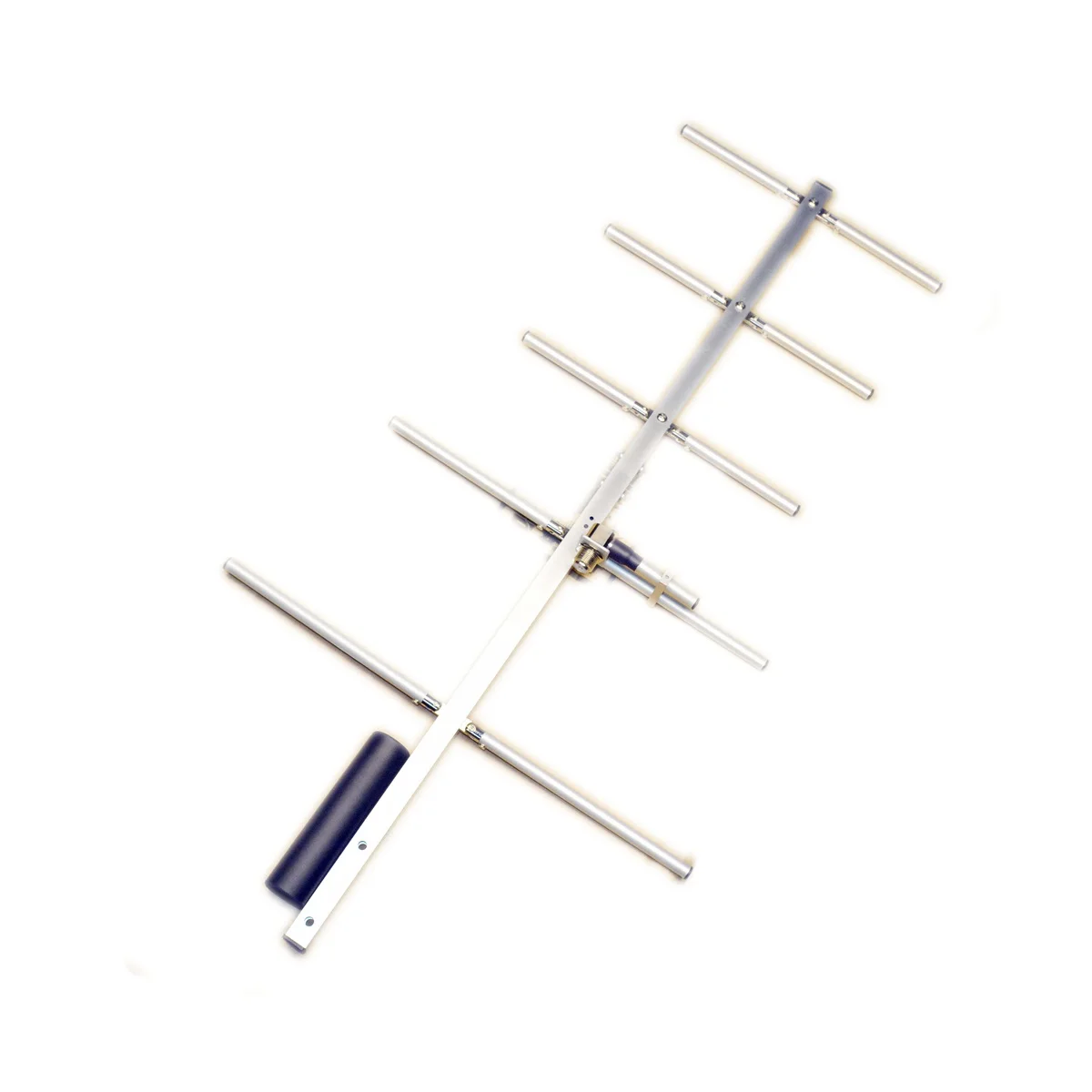

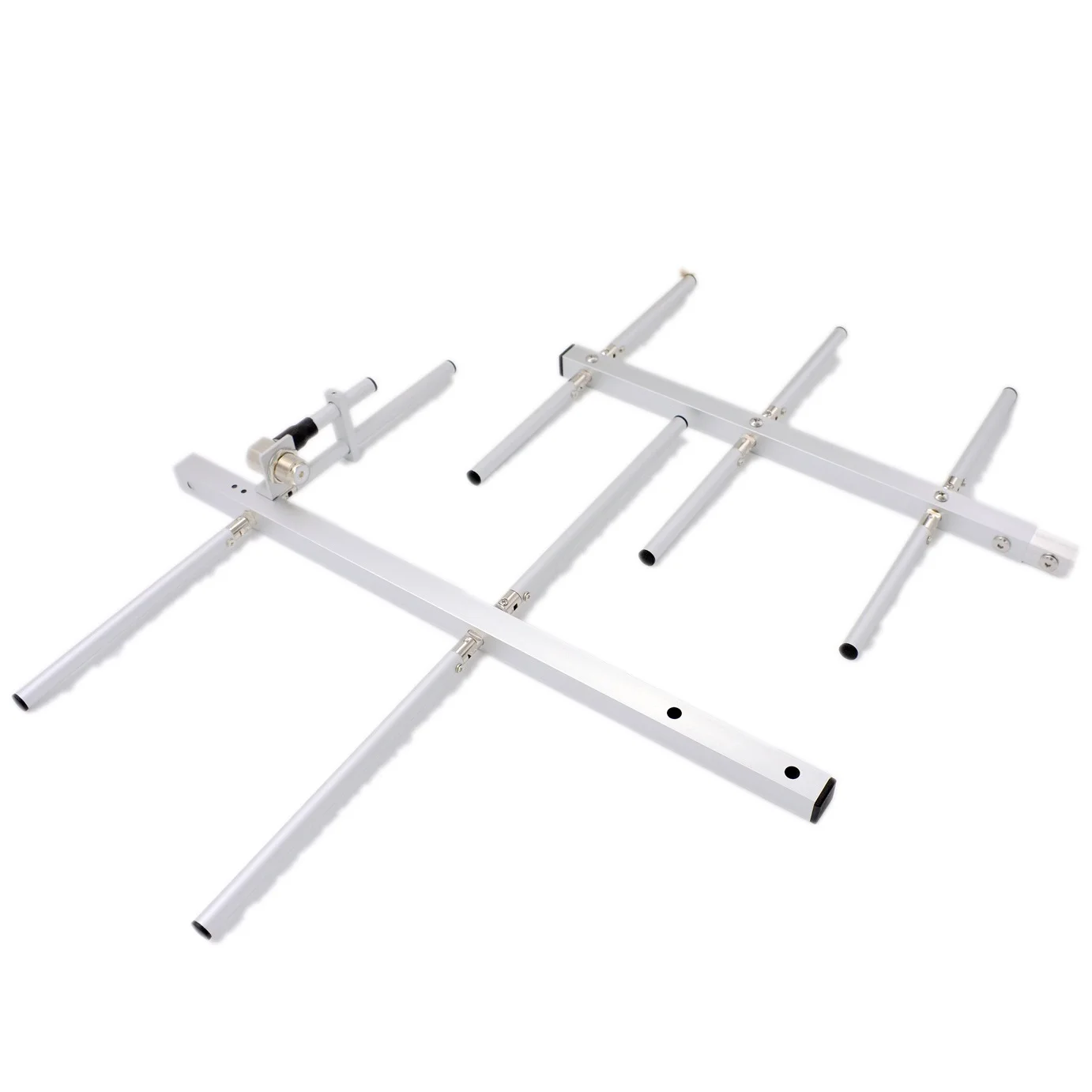

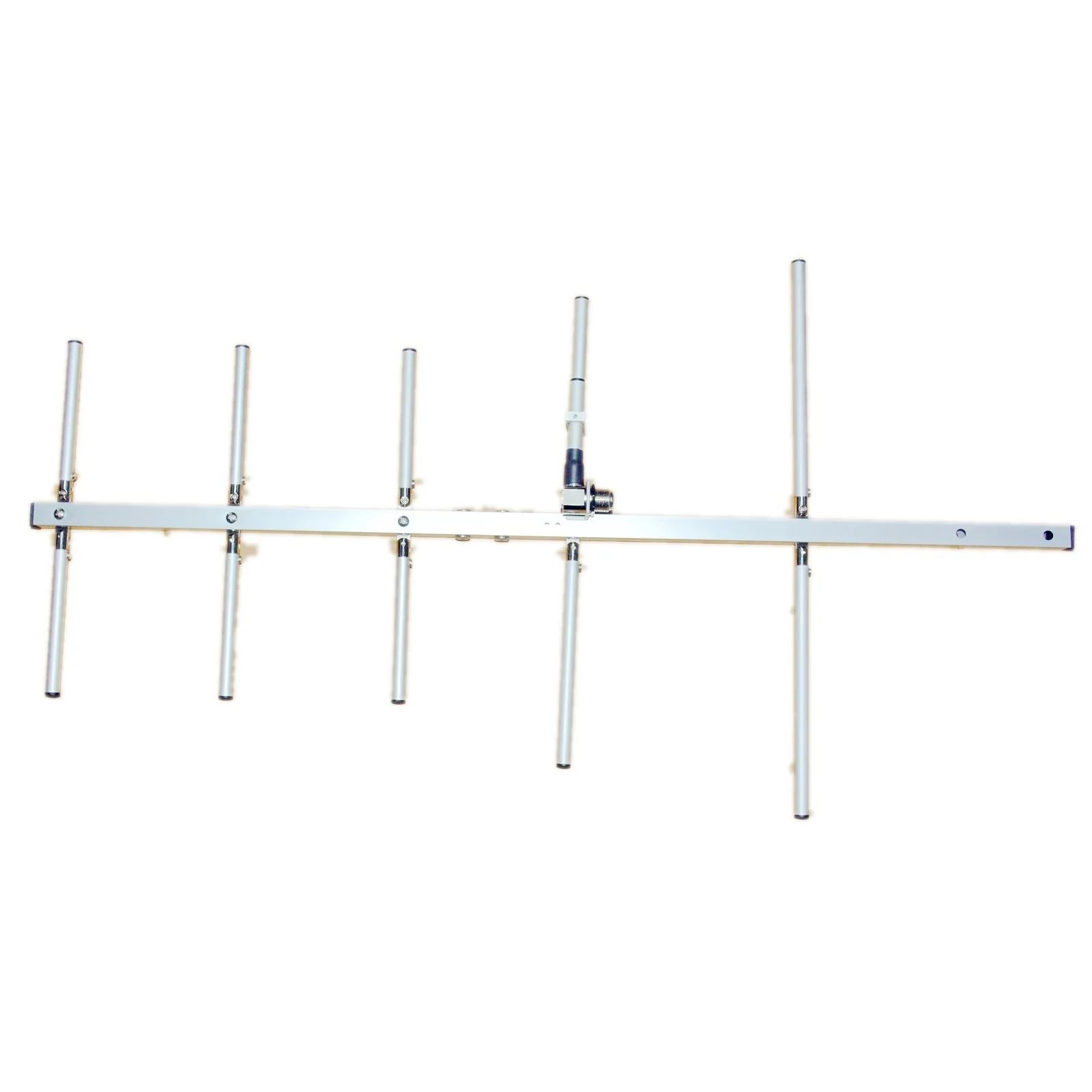

YAGI Gamma Antenna Collapsible 5 Elements UHF 430-450Mhz Foldable Tunable M-J Sl16 SO239 Mobile Radio Base Station Signal Boost
Features:
- 5 Elements
- Foldable
- High Gain
- Strong directionality
- Strong anti-jamming
- Realize long-distance communication
- Simple construction and easy assembly and disassembly
- Lightweight and sturdy, easy to set up
- High-cost performance
Electrical Specifications
Frequency Range: 400~470 MHz (TunableĀ 430-450Mhz )
Bandwidth: 20MHz
Impedance: 50Ī©
VSWR: ļ¼1.2
Gain: 7 dBi
Polarization: Vertical
Horizontal 3dB Beam Width: 53Ā°
Vertical 3dB Beam Width: 45Ā°
Front To Back Ratio: >15 dB
Maximum Power Input-watts: 100W
Lighting Protection: Direct Ground
Connector: SL16-K / M-J / SO239
Mechanical Specifications
Size:Ā 452 x 351x 47mm
Mounting hardware: Ć30ļ½Ć40 mm
Rated Wind Velocity: 60 m/s
Weight: 0.4Kg
Package Includes:
- 1 X Foldable Yagi Antenna
