Wouxun KG-UV9D Plus vhf uhf Multi-functional Ham Radio Communciator DTMF 2 Way Raido 7 bands Walkie Talkie Station for Security
Upgrade Functions :
1. UHF/VHF or VHF/UHF Cross-Band Repeater
2. Completely turn off display screen background light
3. Completely trun off flickering indicator light
Basic Functions :
1. Duplex Work Mode
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
3. Dual Receiving
4. RX on the same/different bands of A&B areas simultaneously
5. Large Colorful Screen
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode,
Self-definition Scanned Frequency Range), Channel Groups Scanning
7. Memory Channels 999
8. Output Power VHF H:5W,M:2W,L:1W UHF H:4W,M:2W,L:1W
9. QT/DQT Encoding/Decoding,QT/DQT Scan
10. Non-Standard CTCSS can be set arbitrarily
11. VOX
12. Multi Definition for Side keys
13. Amplitude-frequency PTT settings
14. Incoming Message Display Caller ID display
15. DTMF Encoding&Decoding
16. Channel groups scanning
17. All Calls,Group Calls And Selective Calls
18. SOS Function
19. Priority Scan Function
20. Remote Alarm
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
22. Voice Guide:English
23. English Screen Display
24. English Channel Name Edit
25. Bright Flashlight illumination
26. Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz(signalling for activating repeater)
27. Reverse Frequency
28. Stopwatch
|
Transmitter |
||
|
|
Wide |
Narrow |
|
Type of Modulation |
16K F3E |
11K F3E |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
Spurious Response |
≥60dB |
≥60dB |
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
|
Max Frequency Deviation |
±5KHz |
±2.5KHz |
|
Frequency Stability |
±2.5ppm |
|
|
Audio Distortion |
≤5% |
|
|
Output Power |
VHF H:5W, M:2W, L:1W |
|
|
Receiver |
||
|
|
Wide |
Narrow |
|
Adjacent Channel Selectivity |
≤70dB |
≤60dB |
|
Inter Modulation |
≤65dB |
≤60dB |
|
Spurious Response |
≤70dB |
≤70dB |
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
|
Signal to Noise Ratio |
≥45dB |
≥40dB |
|
Audio Distortion |
≤5% |
|
|
Audio Power |
≤500mW |
|
|
Sensitivity |
108-136MHz(AM) -106.0dbm SN 13dB |
|
|
Integral Part |
||
|
Frequency Range |
Suitable for different countries or areas 1 TX:US:144-148MHZ(FM) 430-450MHZ(FM) EU:144-146MHZ(FM) 430-440MHZ(FM) |
|
|
Step |
2.5K/5KHz/6.25KHz/10KHz/12.5KHz |
|
|
Channel Number |
999 |
|
|
Work Mode |
F2D/F3E |
|
|
Operating Temperature |
-20~+40 |
|
|
Voltage |
7.4VDC |
|
|
Antenna Impedance |
50Ω |
|
|
Weight |
490 g |
|
|
Size |
124.5X61.5X33.9 (mm) |
|
1 x 2000mAh Li-ion Battery Pack

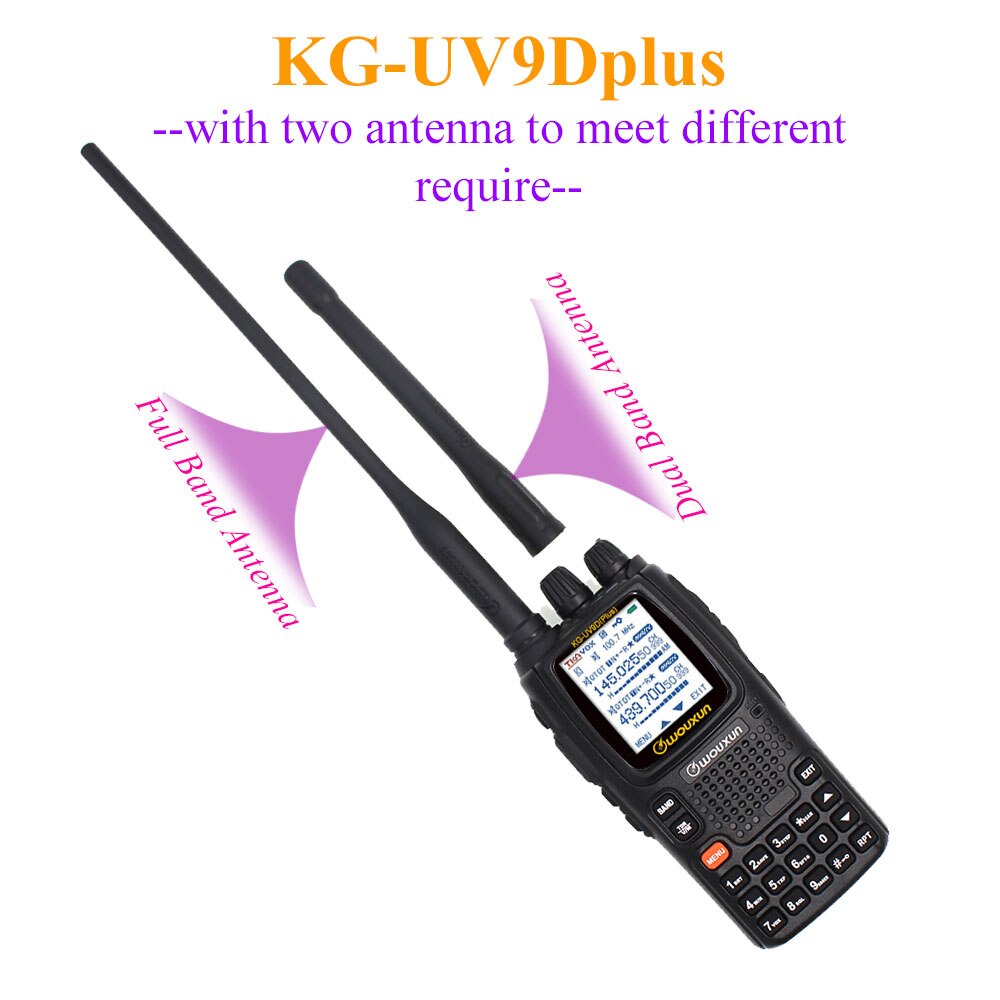

1 x High Gain Antanna for All Band
1 x Dual Band Stubby Antenna
1 x AC Adapter (EU / US Plug for Optional~) (Also come with an adapter according to your country~)
1 x Car Charger Cable
1 x Belt Clip
1 x Wrist Strap
1 x English User Manual
