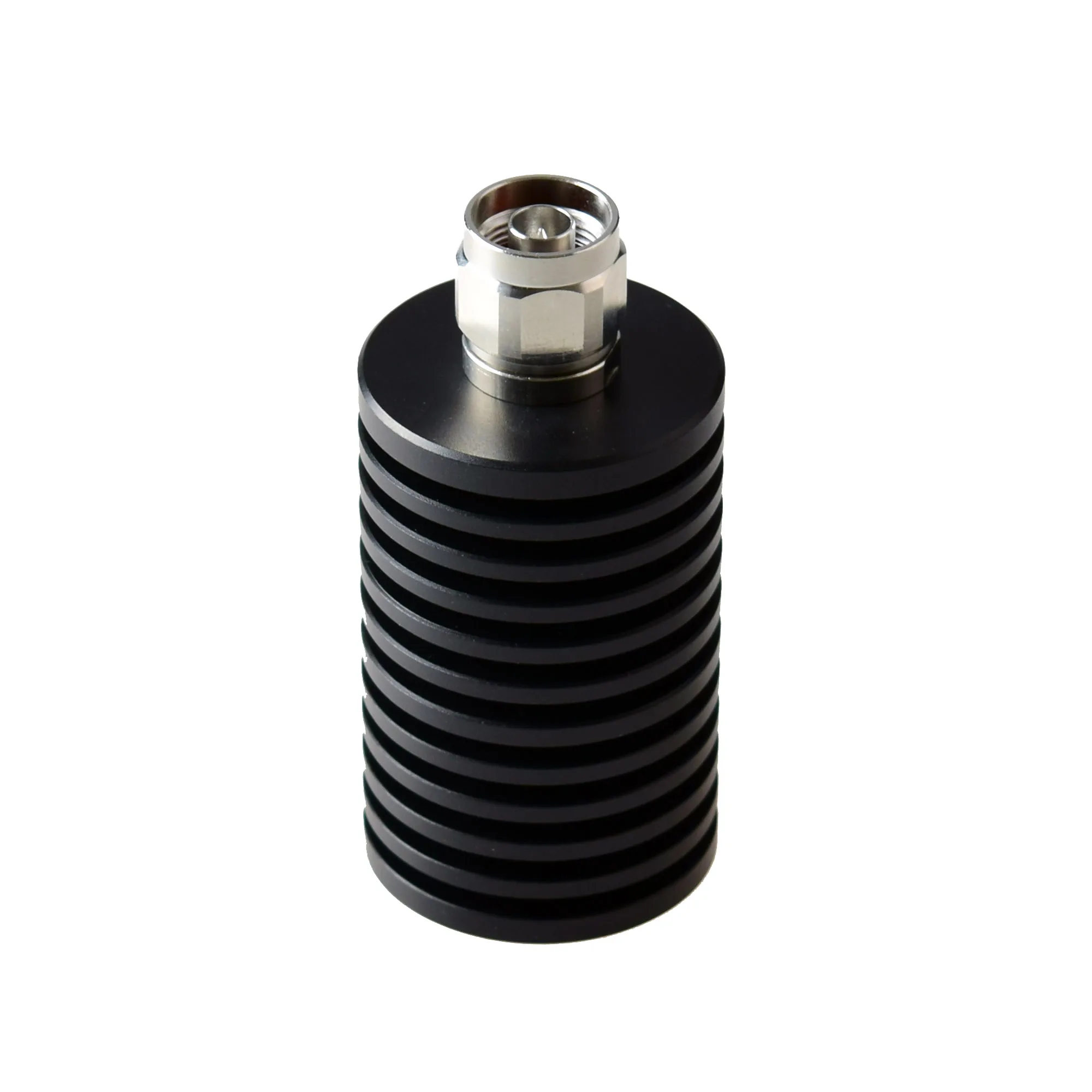

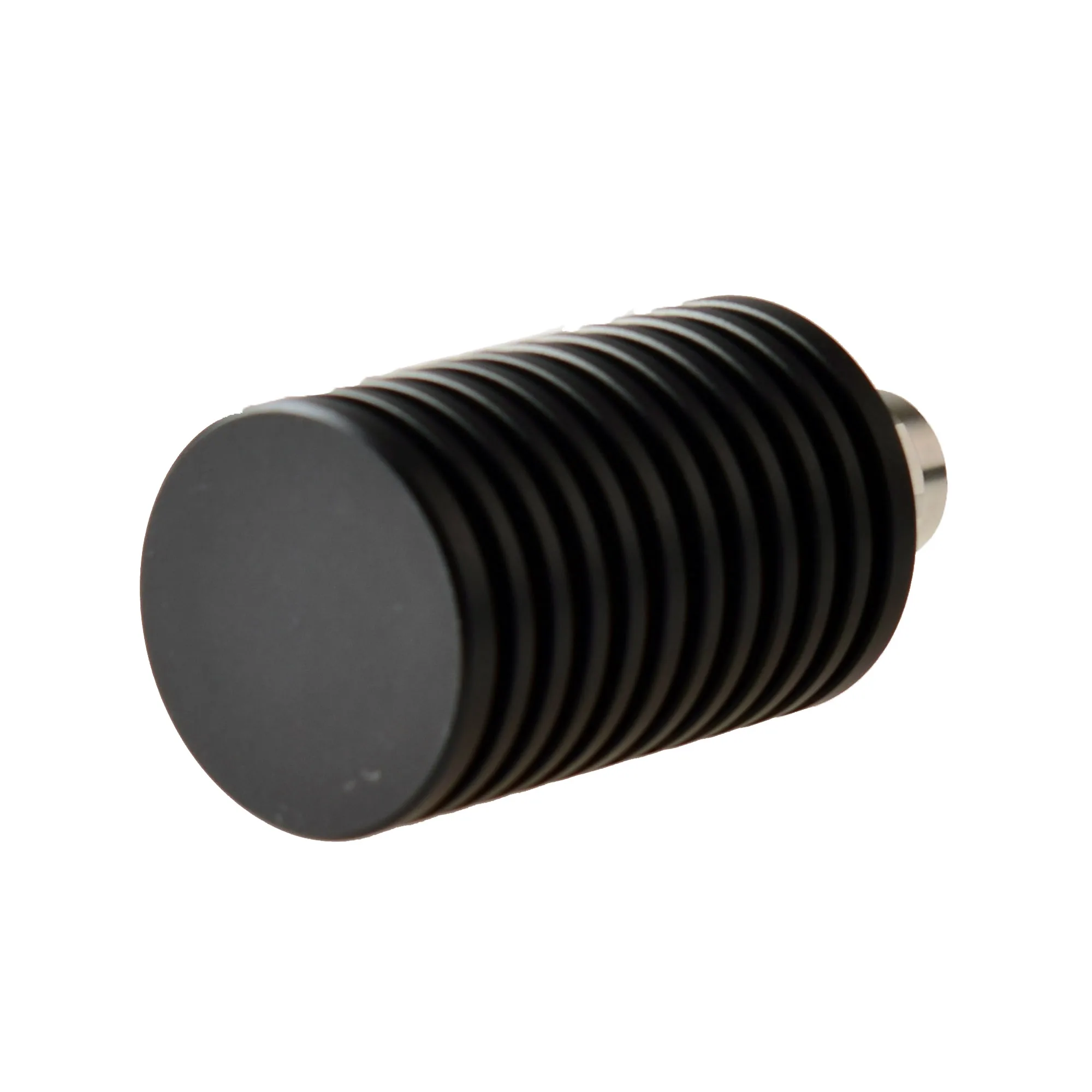

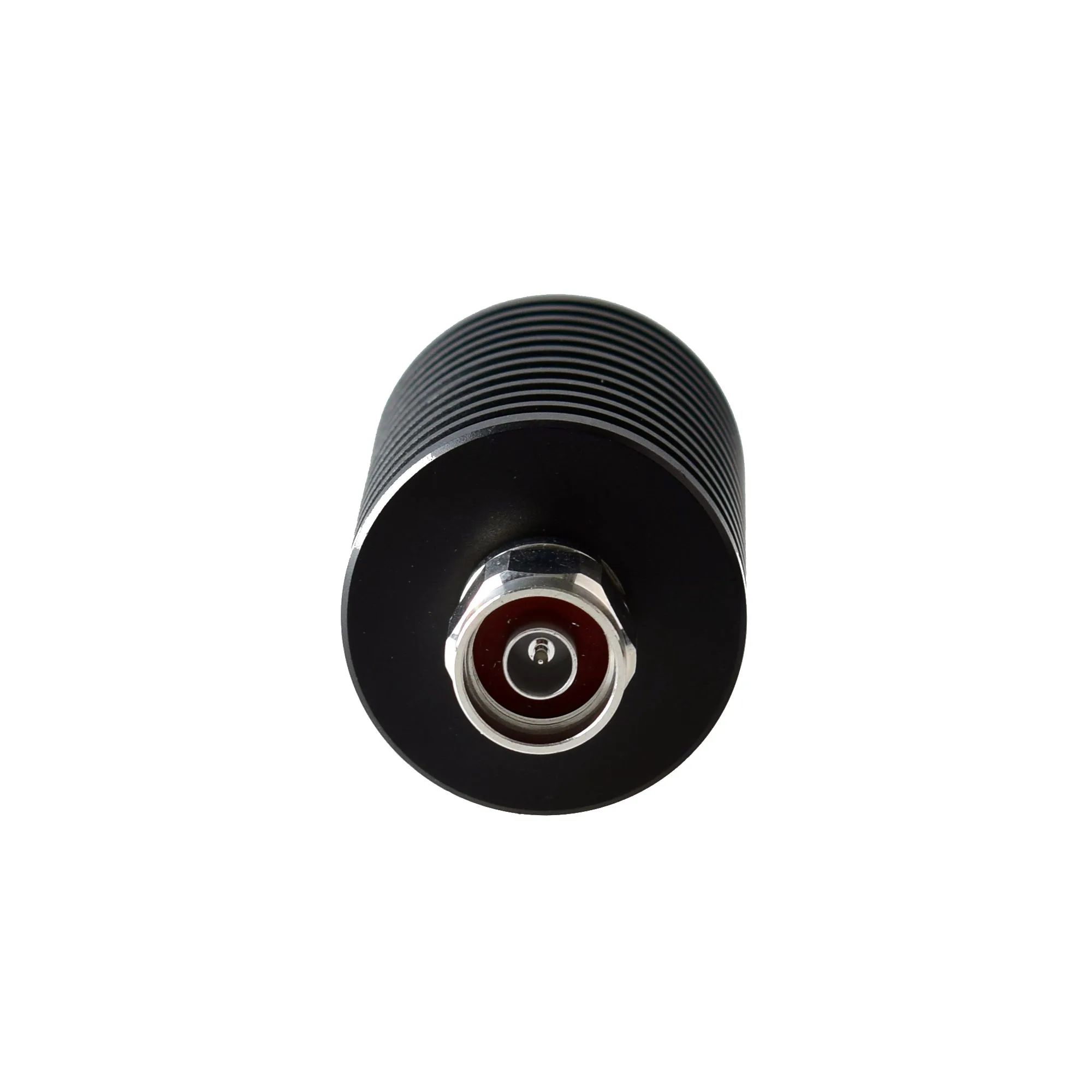

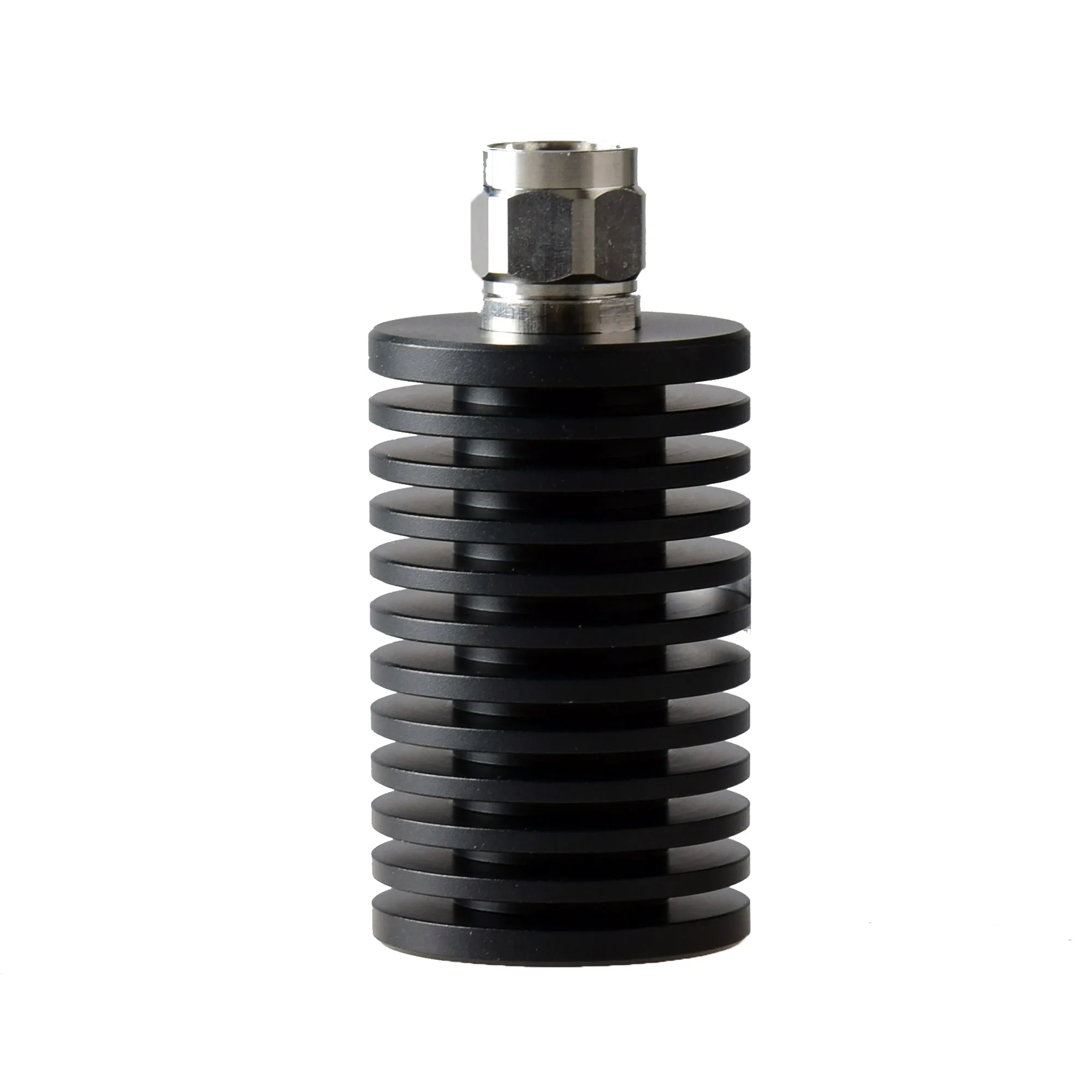

SURECOM Connector N Male Plug DC to 3.0GHz 50W N-type Load Dummy Load 50 ohm Coaxial Terminal Male Pins NJ BS-M/FZ-50(0014-0086)

N Male Plug DC to Max input power: 50 Watt3.0GHz 50w Watt Dummy Load 50 Ohm Rf Coaxial Terminal

Max input power: 50 Watt

Frequency Range: DC to 3.0GHz,VSWR: ≤1.20

Connector: N, Impedance: 50Ω

Temperature range: -55°C to +125°C

Size:44 x72mm ( Not include plug)

Package include:

1 x 50W Watt 50 ohm Dummy Load

Warning: When the input power is high than dummy provide, this is damage the dummy load.

Why use the dummy load?

A Dummy Load is a device used to simulate an electrical load during testing. In an RF System

a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.

The Dummy Load is selected in a way so that it has a similar impedance to the real device that will be connected to the RF System.Not using

a dummy load and leaving the port open, can result in some unwanted reflections which can damage the RF System. Also, using a real antenna in the testing phase can result in some unwanted transmission in the lab which will interfere with other devices and technologies being tested.
