Description

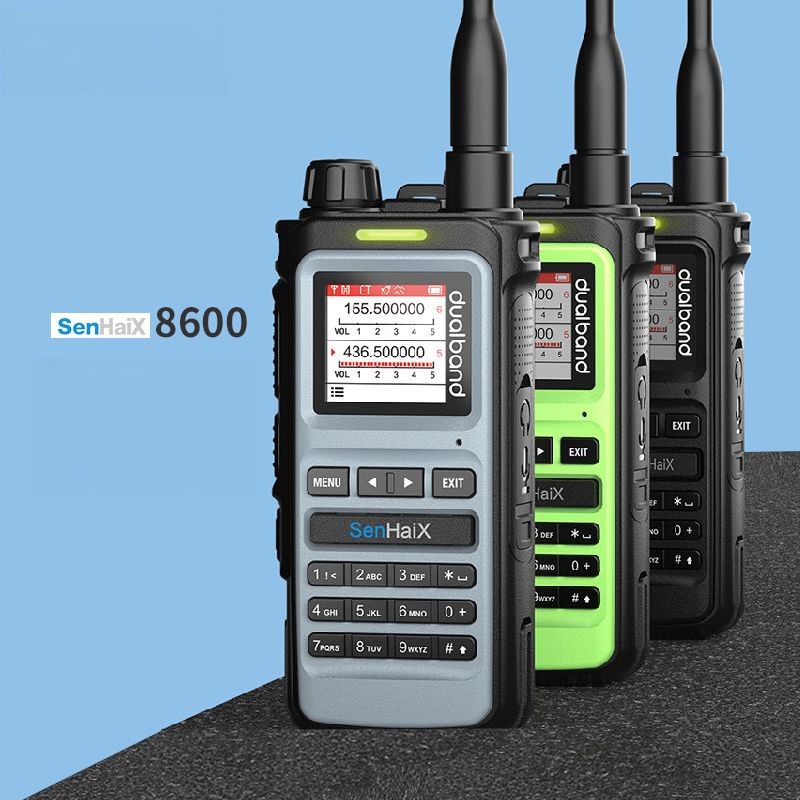

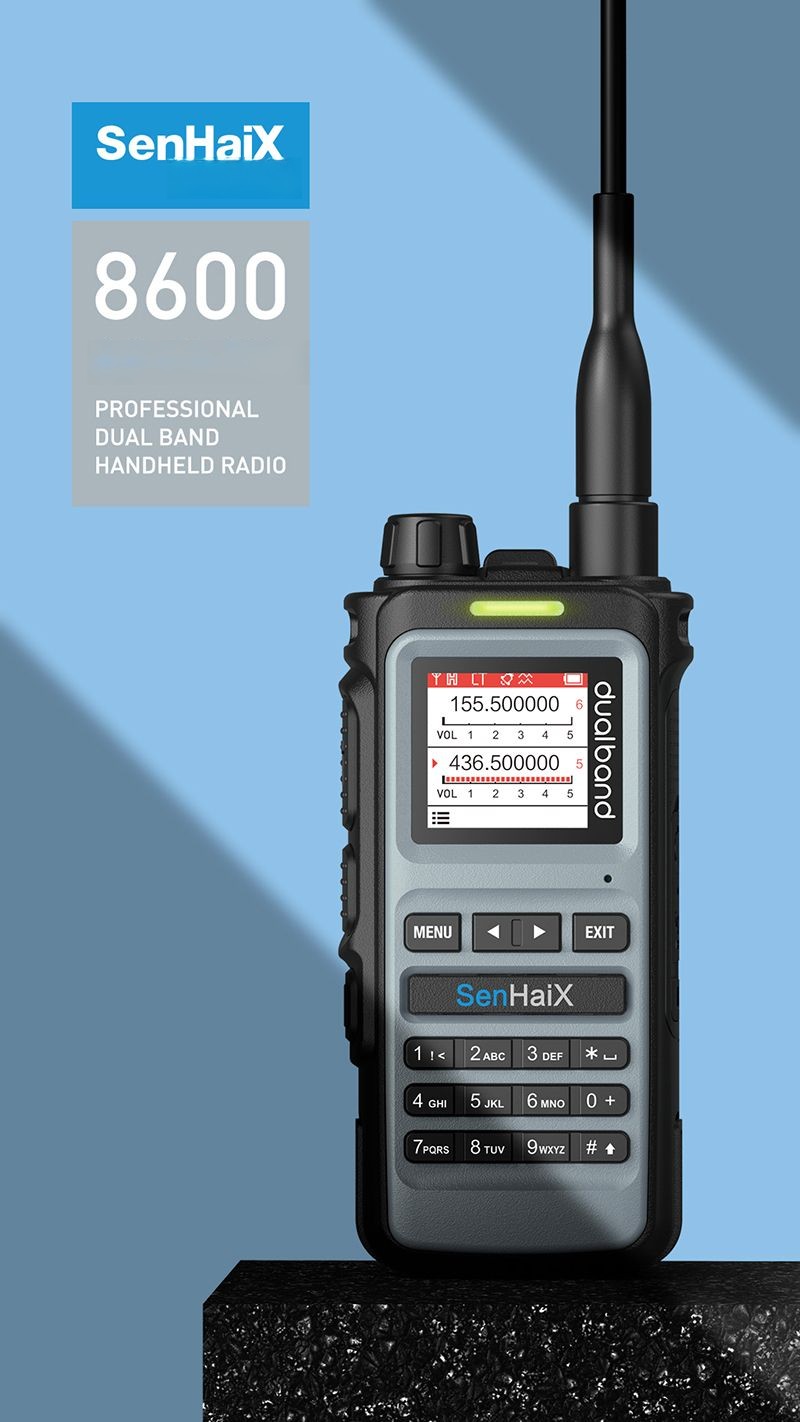

SENHAIX 8600 UHF VHF ham Walkie Talkie TPU Dual Band HAM Transceiver Interphone Handheld Radio
SENHAIX 8600 Walkie Talkie 5W Dual Band Standby Waterproof Two-Way Radio 128 Channels VOX Function Hiking Ham Radio Transceiver

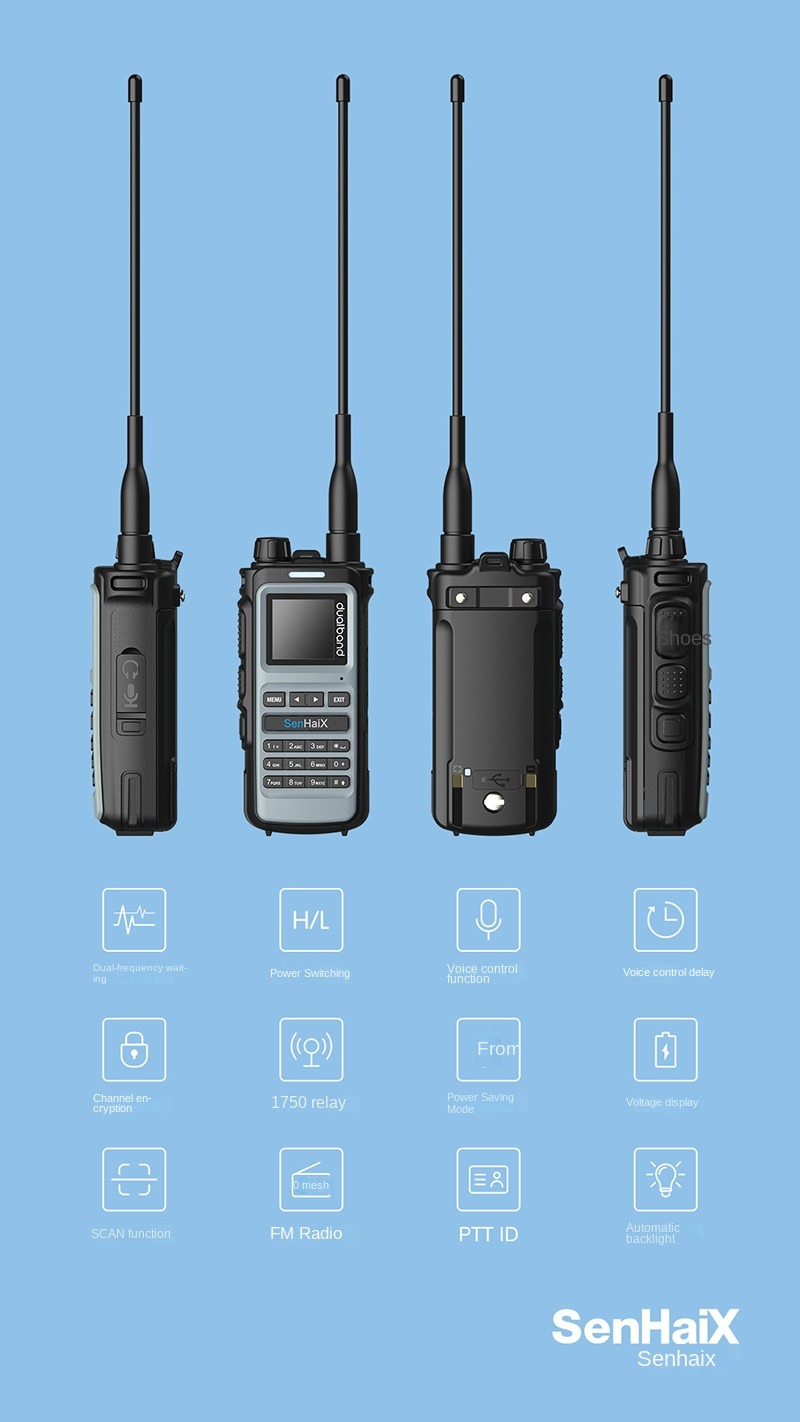

Product Features

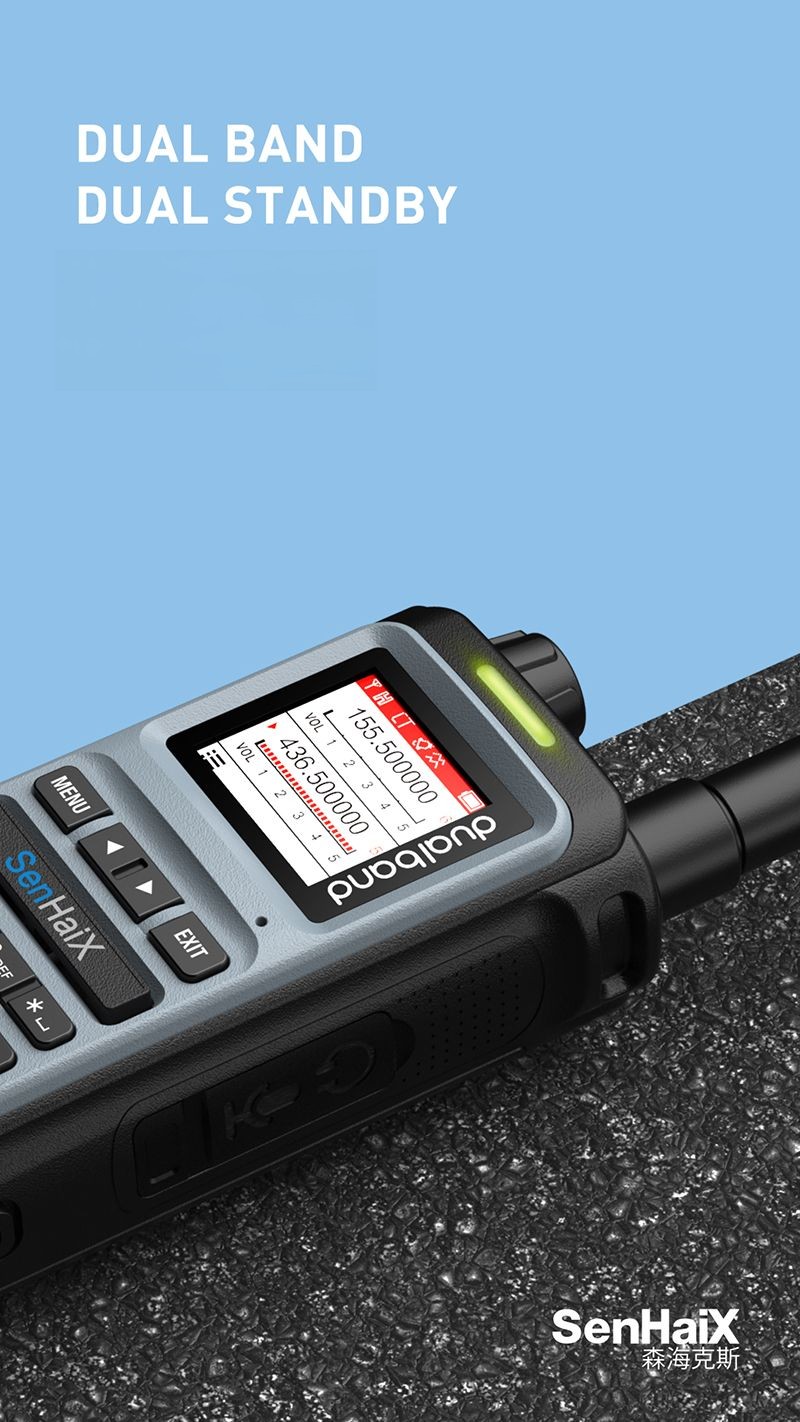

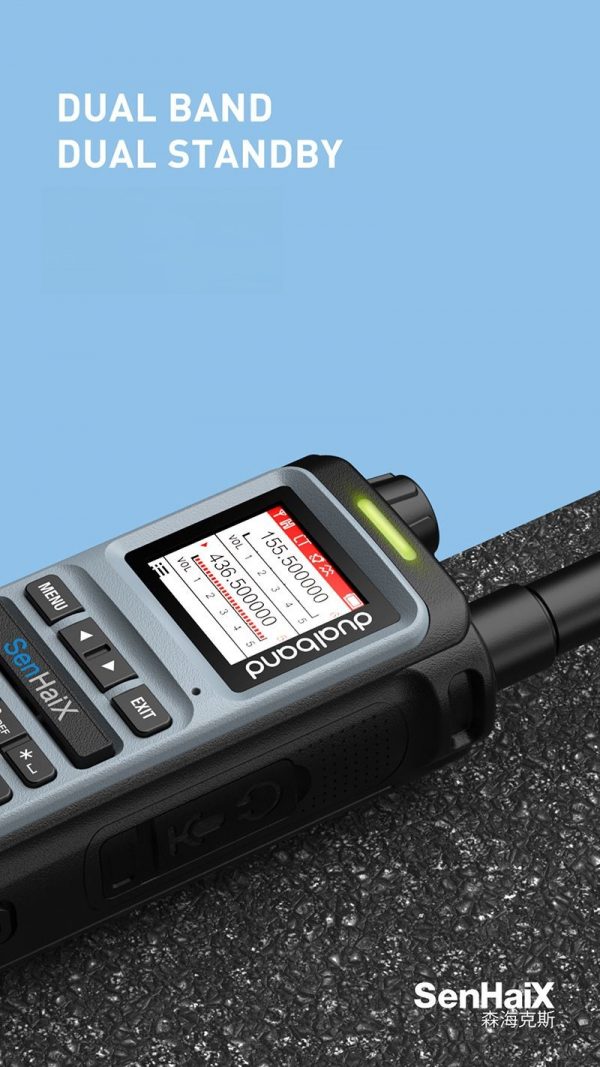

1. Dual Frequency Waiting
2. Power switching
3. Voice control function
4. Voice control delay
5. Channel encryption
6. 1750 relay
7. Power saving mode
8. Voltage display
9. Scan function
10. FM radio
11. PTT ID
12. Automatic backlight
Technical Specifications
| GeneralSpecification | ||
| Frequency Range | UHF 400-470MHz | |
| VHF 136-174MHz | ||
| Channel | 128 | |
| Step | 25KHz(Broadband), 12.5KHz(Narrow band) | |
| Stable | ±2.5ppm | |
| Voltage | 7.4V DC± 20% | |
| Working Temperature | -20℃ ~ +60℃ | |
| Antenna impedance | 50Ω | |
| Dimension | 134*60*38mm(include battery) | |
| Weight | 270g(include battery, antenna) | |
| Transmit | ||
| Broadband | Narrow band | |
| TX power | 5W | 5W |
| Modulation | 16KφF3E | 8KφF3E |
| Adjacent channel power | ≥65dB | ≥60dB |
| Signal to noise ratio | ≤-40dB | ≤-40dB |
| Parasitics and harmonics | ≤65dB | ≥60dB |
| Spurious emission | ≤-36dBm | ≤-36dBm |
| Audio response | 300Hz-3KHz | 300Hz-3KHz |
| Audio distortion | ≤5% | ≤5% |
| Receive | ||
| Broadband | Narrow band | |
| Sensitivity | -120dBm (20db SINAD) | -120dBm (20db SINAD) |
| Intermodulation | ≥60dB | ≥55dB |
| Adjacent channel selectivity | ≥60dB | ≥55dB |
| Glitch response | ≥60dB | ≥55dB |
| Audio response | 300Hz-3KHz | 300Hz-3KHz |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | ≤5% |
| Audio output power | 1W | 1W |
