MAT-10 Automatic Tuner for YAESU FT-818 ICOM IC-705 Lab599 TX-500 QRP POTA S0TA

• The mAT-10 is a compact and exquisite tuner designed for YAESU FT-817/818, it can also be
  used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated
  control cable mAT-CY, it is a dedicated tuner, which can achieve convenient “one-key tuning”.
  If no control cable is used, it is a universal QRP tuner for all low-power transceivers.

• The mAT-10 is connected to the ACC port of the FT-817/818 transceiver through control cable.
  The ACC interface allows an external device such as a PC or the mAT-10 to control
  the FT-817/818 by sending it serial commands. The mAT-10 has the function of “one key tuning”.
  When the multi-function key on tuner is pressed, the mAT-10 will automatically control
  the start-up tuning of transceiver.

• When mAT-10 is used in other QRP transceivers, it does not need control cables and can
  work only by connecting RF cables. The tuning process can be completed by pressing the
  Multi-function on the panel, its operation is very simple.

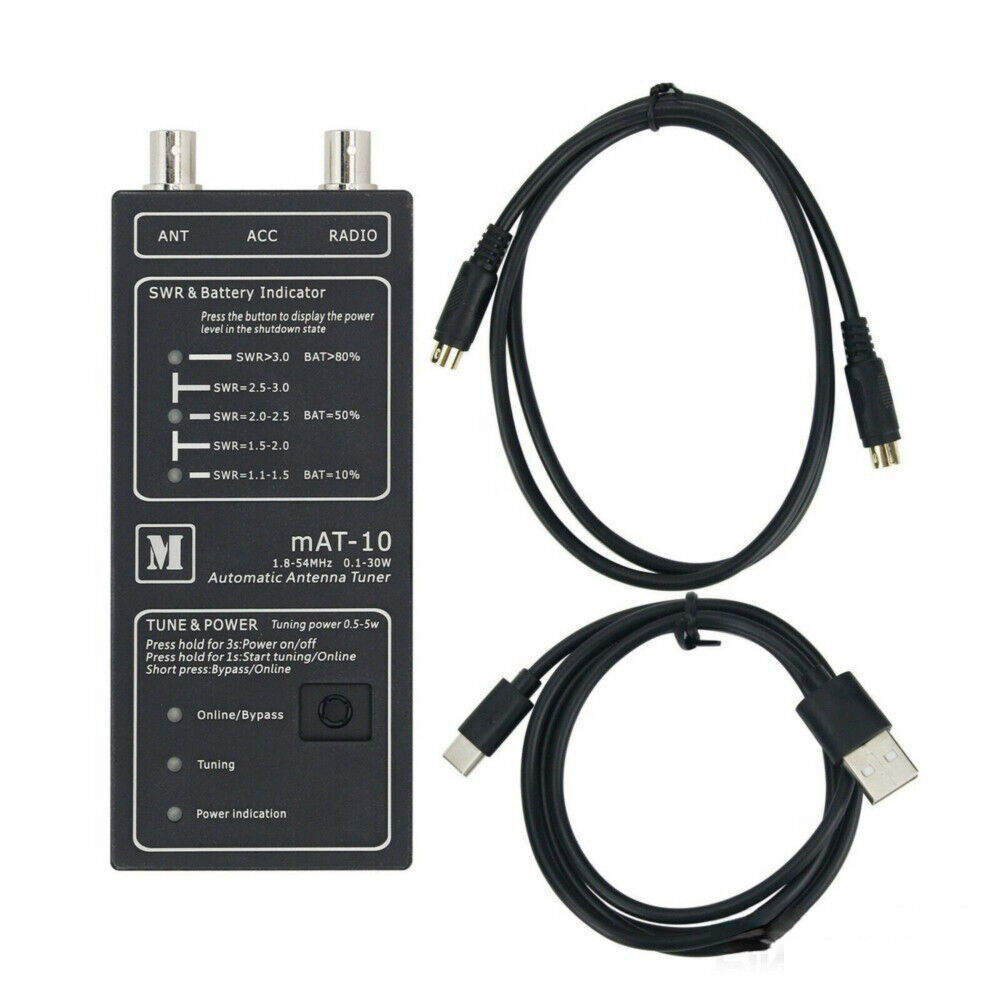

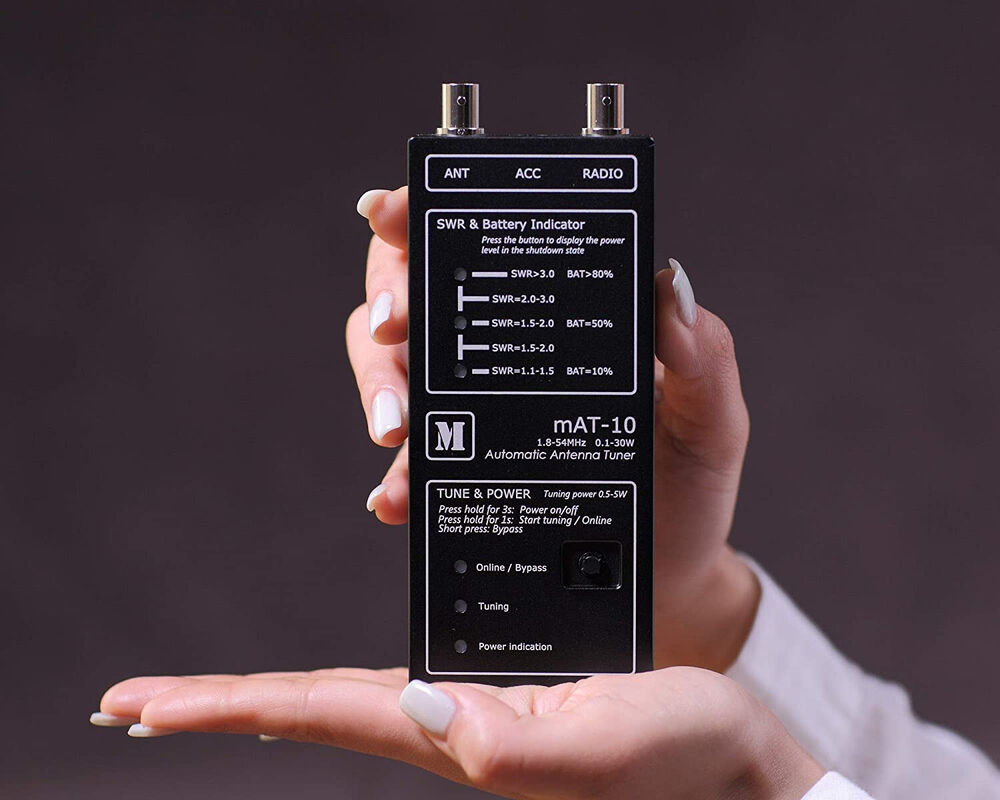

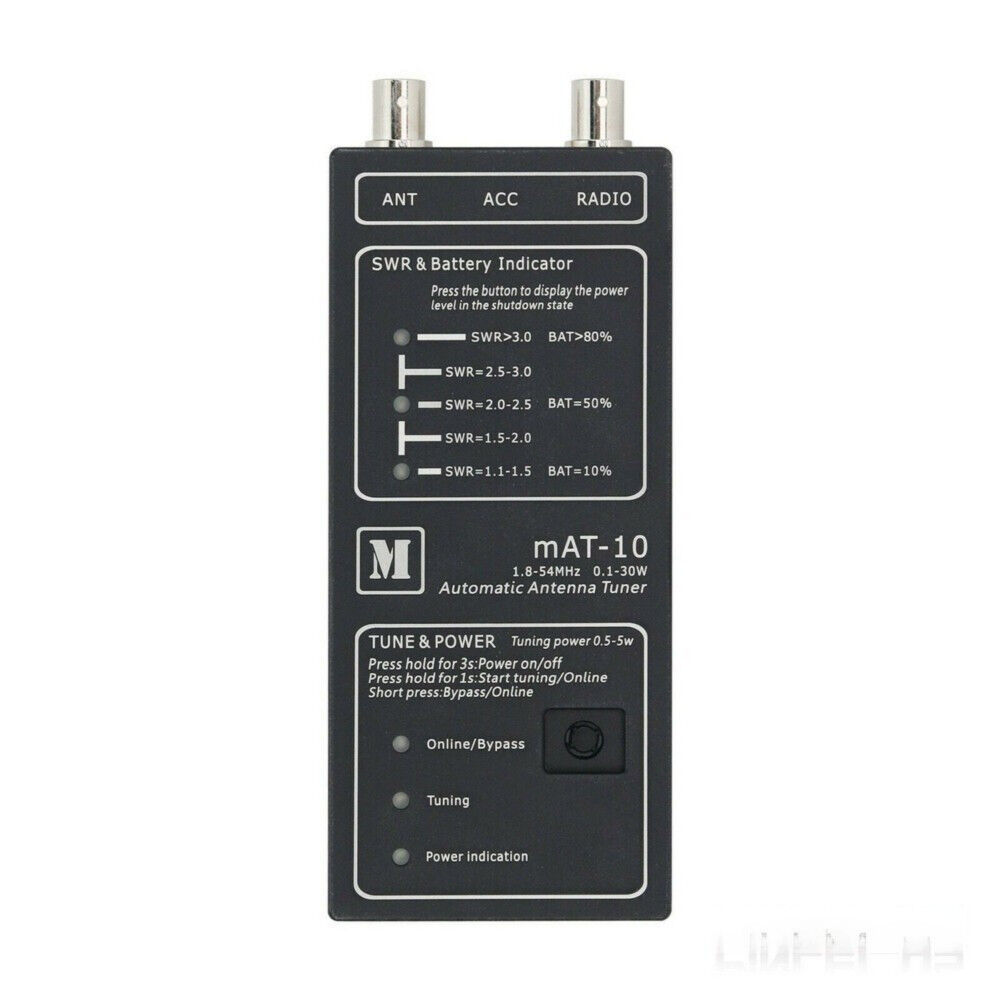

• The three lights in the upper half of the tuner are used to display battery power or current
  SWR. In the shutdown state, after pressing the multi-function key, the three lights indicate
  the power level of the battery inside the tuner. On startup, these three lights are used to indicate
  the current SWR.

• The mAT-10 has only one button, which can realize multiple functions. Whether it’s for
  FT-817/818 or other transceivers, this button has the functions of switching power supply,
  starting tuning, switching online/bypass status, etc. The lower half of the tuner has three
  indicator lights, which are used to indicate “online/bypass”, “tuning process” and “power supply”.
  Also supports for other QRP stations.

Specifications:

– Max. 30W in SSB and CW modes, 5W in PSK and digital modes
