English Menu KN990 HF Transceiver KN-990 0.1~30MHz SSB/CW/AM/FM/DIGITAL IF-DSP Amateur Ham Radio Transceiver Spectrum KP990 100W Power Amplifier
KN990 HF Transceiver is a short wave full segment transceiver with medium frequency DSP technology.
The system language is English !
Note: After receiving the machine, use a USB flash drive to back up the machine’s configuration file. the configuration file may lost when upgrade firmware ! At that time, as long as you import this file, it can return to normal.
Features:

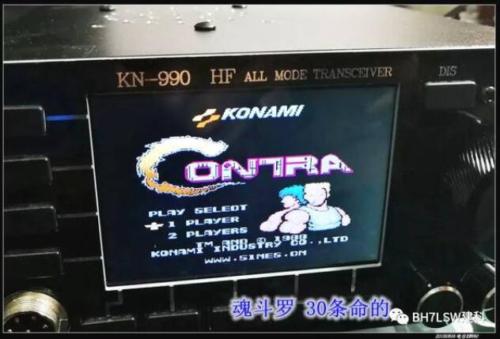

3.5 inch LCD, without touch fuction
Frequency range: Reception: 0.1~30MHz
transmitting : Amateur shortwave band
Working mode: SSB/CW/AM/FM/DIGITAL
Receiving sensitivity: 0.2uV
Minimum frequency step: 10Hz
Working voltage: 12~15V DC
Current parameter: RX 0.4A
TX 4A @Max
Whole machine size: 160X80X220 (mm) [excluding protrusion]
Transmitting power: rated 15 watts
Modulation mode: all mode digital modulation and demodulation.
Stray suppression system: more than 45dBc
Carrier suppression: greater than or equal to 45dBc
Selectivity: all mode bandwidth is continuously adjustable (minimum bandwidth adjustment step 10Hz).
Package:
1x KN990 HF Transceiver
1X mic
