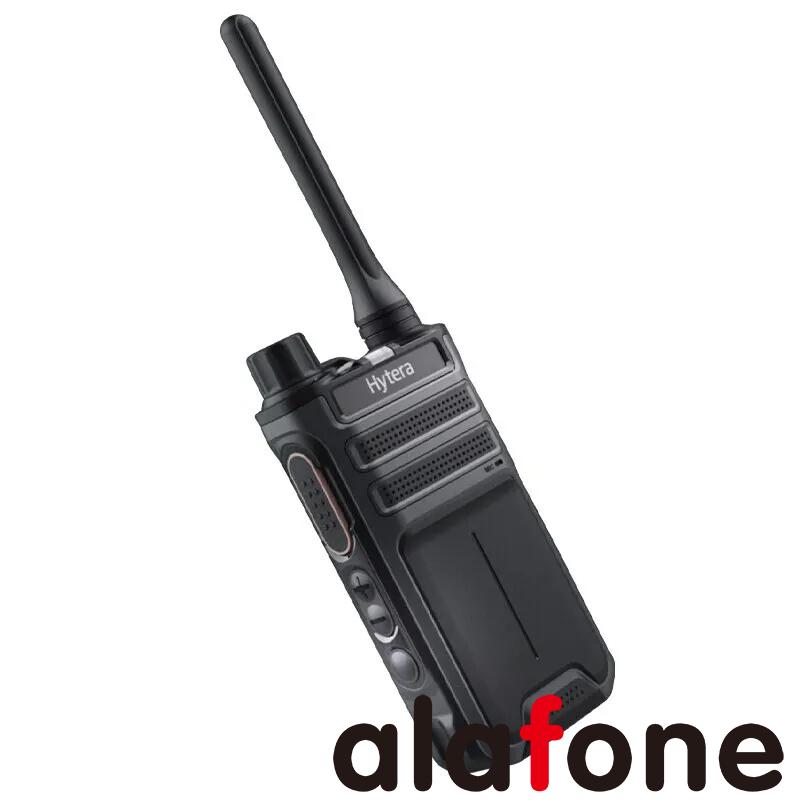

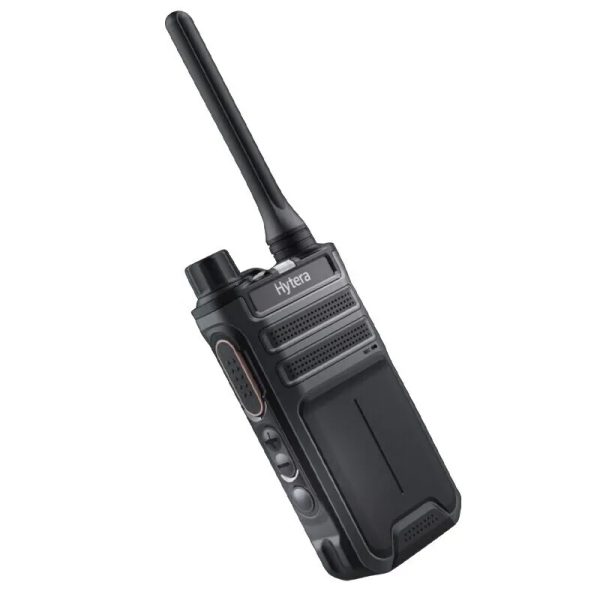

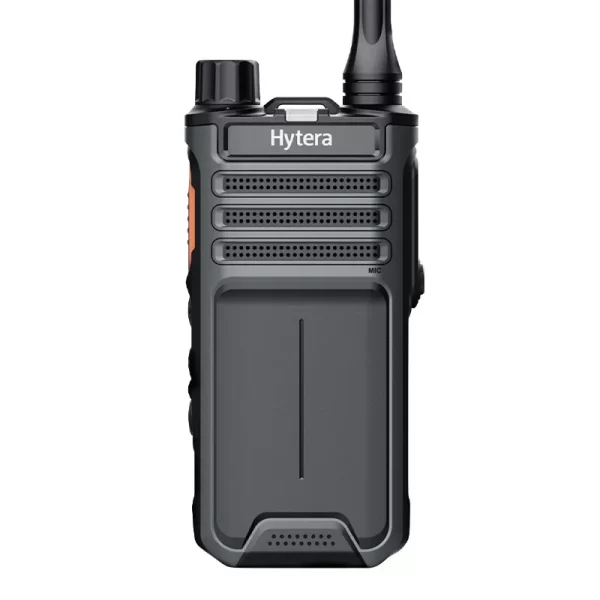

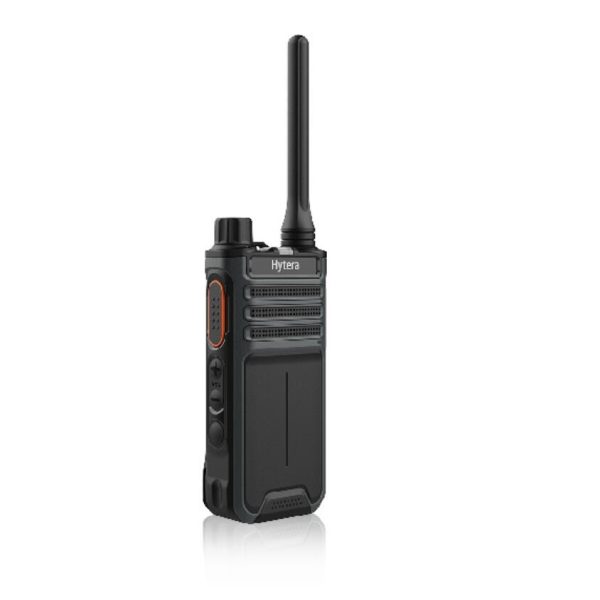

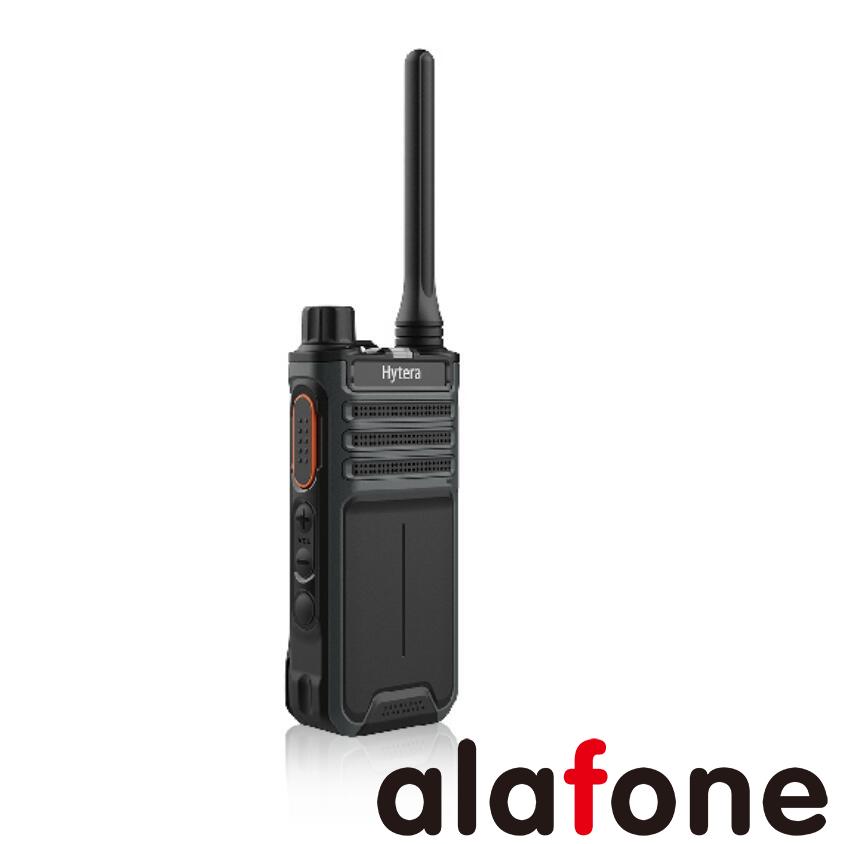

HYT Hytera BP515 Bluetooth DMR and Analogue Radio
Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. The BP515 series has extended range in class and features 64 channels, making group communication more flexible.
Specifications of BP515
| Frequency Range | UHF1ļ¼400-470 MHz; UHF3ļ¼350~400MHz; VHFļ¼136-174 MHz |
| Channel Capacity | 256 |
| Zone Capacity | 4 |
| Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
| Operating Voltage | 7.4 V (rated) |
| Battery | standard:1500 mAh 7.4 V ;Optional:2200 mAh 7.4 V |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | 12 h (1500 mAh); 16 h (2200 mAh) |
| Frequency Stability | Ā±0.5 ppm |
| Antenna Impedance | 50 Ī© |
| Dimensions(HĆWĆD) mm | 115 mm x 55 mm x 29.5 mm |
| Weight | 210 g |
| BT | BT 5.0 BLE+EDR |
| Sensitivity(Analog) | 0.18 Ī¼V (12 dB SINAD) |
| Sensitivity(Digital) | 0.18 Ī¼V/BER5% |
| Adjacent Channel Selectivity | TIA-603: 60 [email protected] kHz / 70 dB@20/25 kHz ETSI: 60 [email protected] kHz / 70 dB@20/25 kHz |
| Intermodulation | TIA-603: 70 [email protected]/20/25 kHz; ETSI: 65 [email protected]/20/25 kHz |
| Spurious Response Rejection | TIA-603: 70 [email protected]/20/25 kHz; ETSI: 70 [email protected]/20/25 kHz |
| Blocking | TIA-603: 80 dB; ETSI: 84 dB |
| Hum&Noise | 40 [email protected] kHz; 43 dB@20 kHz; 45 dB@25 kHz |
| Rated Audio Power Output | 1 W |
| Rated Audio Distortion | ā¤3% |
| Audio Response | +1~-3 dB |
| Conducted Spurious Emission | <-57 dBm |
| RF Power Output | UHFļ¼4 W/1 W; VHFļ¼5 W/1 W |
| FM Modulation | [email protected] kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz |
| 4FSK Digital Modulation | 12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW |
| Conducted/Radiated Emission | -36 dBmļ¼1 GHz; -30 dBmļ¼1 GHz |
| Modulation Limiting | Ā±2.5 [email protected] kHz; Ā±4.0 kHz@20 kHz; Ā±5.0 kHz@25 kHz |
| FM Hum&Noise | 40 [email protected] kHz; 43 dB@20 kHz; 45 dB@25 kHz |
| Adjacent Channel Power | 60 [email protected] kHz; 70 dB@20/25 kHz |
| Audio Distortion | ā¤3% |
