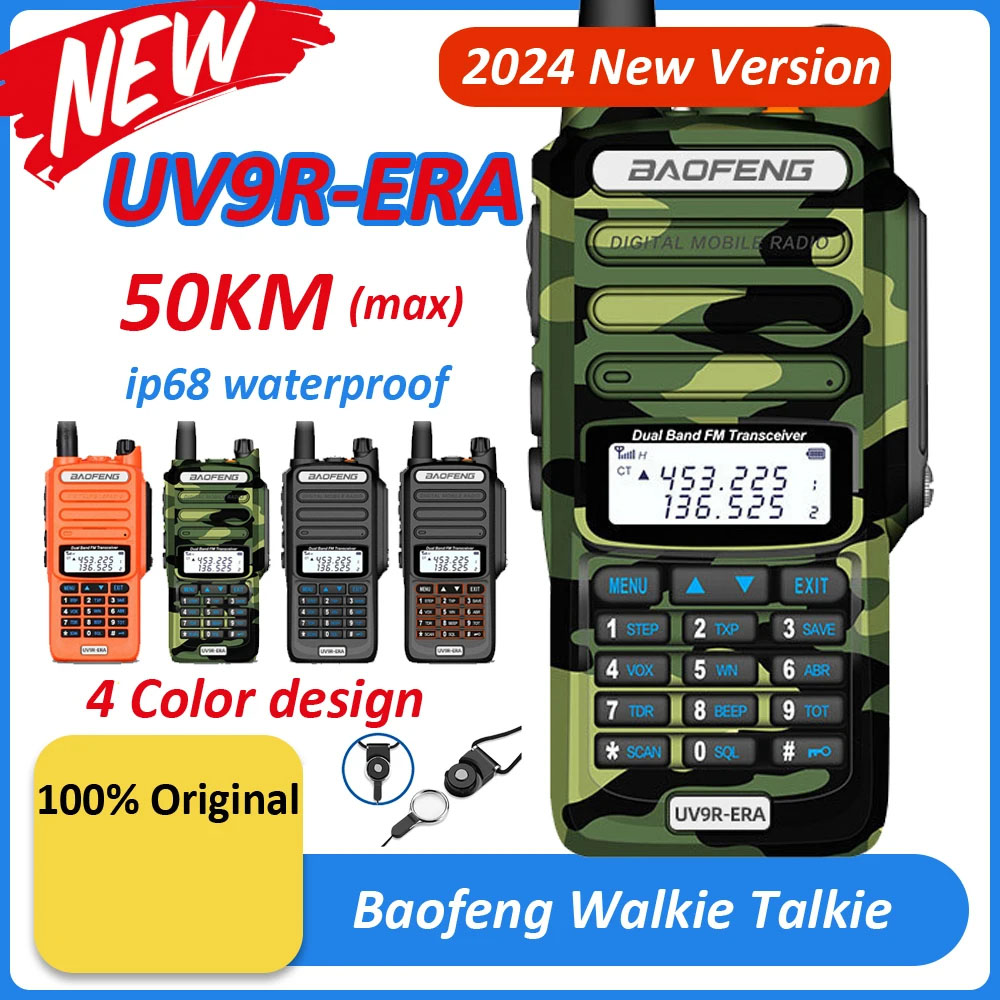

2024 IP68 Waterproof Baofeng UV 9R ERA Walkie Talkie Long Range 50km CAR CB Ham Radio HF Transceiver UHF Radio Station Wireless
Baofeng UV9R-ERA,higher Power,higher battery capacity,longer distance
2024 New Arrival Protable Baofeng UV 9R ERA ip68 Waterproof & Dustproof (not for diving), 1-50KM Long range for Complicate using environment.
Baofeng UV 9R ERA Features:
1. IP68 waterproof and dustproof (Not diving)
2. Relay Forwarding Confirmed (1750 HZ)
3. Dual Band, Dual Display and Dual Standby
4. High &Low Power Switchover
5. Battery Saving
6. VOX Function
7. Wide/Narrow Band Selection
8. Auto-Back Light
9. Dual Band Standby
10. Time-out Timer (TOT)
11. 50 CTCSS and 104 DCS Codes
12. Voice Prompt
13. ANI Code
14. PC or Manual Program
15. DTMF Code
16. PTT-ID
17. ATUO Keypad Lock
18. Busy Channel Lock Function
19. Low Battery Warning
20. Emergency Alarm
21. Priory Scanning Function
22. U/V Cross Band Dual Watch
|
2024 Radio Baofeng UV9R ERA |
|
|
Frequency Range |
VHF:136-174MHz |
|
Channel Capacity |
128 |
|
Channel Spacing |
25KHz/12.5KHz |
|
Antenna Impedance |
50Ω |
|
Microphone Impedance |
600Ω |
|
Operating Voltage |
7.4V DC±15% |
|
Frequency Stability |
±2.5ppm |
|
Battery |
9500mah (Polymer Li-ion) |
|
Compatible With American Military Standard(Mil-STD-810C/D/E) |
|
|
Transmitter(EIA-RS 316B STANDARD) |
|
|
RF Power Output |
High power |
|
Modulation Type |
FM Radio (65.0MHz-108.0MHz) |
|
Modulation Sensitivity |
<15µV |
|
Modulation Distortion |
≤3% |
|
Max Freq Deviation |
<5KHz |
|
Occupied Bandwidth |
≤16KHz |
|
Modulation Feature |
±3dB |
|
Spurious Radiation |
≤7.5μW |
|
Adjacent Channel Power |
≤-65dB |
|
Receiver |
|
|
Sensitivity(12db SINAD) |
≤0.15μ(12dB S/N) |
|
Squelch Sensitivity |
≤0.1μV |
|
Audio Power output |
1W/16Ω |
|
Audio Respond |
-6 |
|
Operation Bandwidth |
>5KHz |
|
Co-channel Rejection |
≥-8dB |
|
Blocking |
≥85dB |
|
Adjacent Channel Selectivity |
≥65dB |
|
Standby Current |
60mA,15mA |
|
Spurious Rejection |
≥60dB |
|
Intermodulation Resistance |
≥60dB |
Standard Package Includes:
1 X Baofeng UV 9R ERA Radio with battery
1 X Antenna
1 X Charger
1 X Belt clip
1 X Sling
1 X User’s manual
