Baofeng E50 Walkie Talkie 400-480Mhz Portable BF E50 Pofung 5W High Power Two Way Radio 10KM Distance Transceiver
General features:
1 50 CTCSS/105 CDCSS
2 VOX Function
3 Voice Prompt
4 PC Programming
5 Emergency Alarm
6 Intelligent Charging
7 Battery Save
8 Low Voltage Alert
9 Time-out Timer
10 Torch Light
Frequency Range:400-470MHZ
Storage Channel:16
Rated Voltage:3.7V
Step Frequency:12.5/25KHz
Frequency Stability:±2.5ppm
Battery Life:About 12 Hours
Battery Capacity:1500mAh li-ion
Frequency Combination:50Ω
Antenna Impedance:50Ω
Work temperature:-30°c-+60°c
Work Mode:FM (F3E)
Dimension:20*6*3.5cm
Weight:170g
|
Model:BF-E50 two-way radio
|
|
|
General Specifications
|
|
|
Frequency Range
|
UHF 400-480MHz
|
|
Channel Capacity
|
16
|
|
Channel Spacing
|
25KHz
|
|
Operated Voltage
|
3.7 V
|
|
Battery
|
H-1500MAh Li-ion
|
|
Battery Life(5-5-90 duty cycle)
|
About 8 hours
|
|
Frequency Stability
|
±2.5ppm
|
|
Operated Temperature
|
-30°c-+60°c
|
|
Antenna Impedance
|
50Ω
|
|
Weight (with battery/antenna) 198g
|
170 g
|
|
Communication Range
|
about 6km
|
|
Transmitter
|
|
|
RF Power Output
|
≤ 5W
|
|
Modulation
|
F3E
|
|
Spurious Emission
|
≤65dB
|
|
FM Noise
|
≤-45dB(W) ≤-40dB (N)
|
|
Audio Distortion
|
≤5%
|
|
Transmitting Current
|
≤1.3A
|
|
Receiver
|
|
|
Sensitivity (12dB SINAD)
|
≤0.20 uV
|
|
Selectivity
|
55dB/50dB
|
|
Inter-modulation
|
≥65dB
|
|
Adjacent Channel Selectivity
|
≥60dB
|
|
Spurious Response
|
≥60dB
|
|
FM Noise
|
45dB/40dB
|
|
Audio Power Output
|
1000mW
|
|
Audio Distortion
|
≤5%
|
|
Standby Current ≈15mA (with battery save on)
|
|

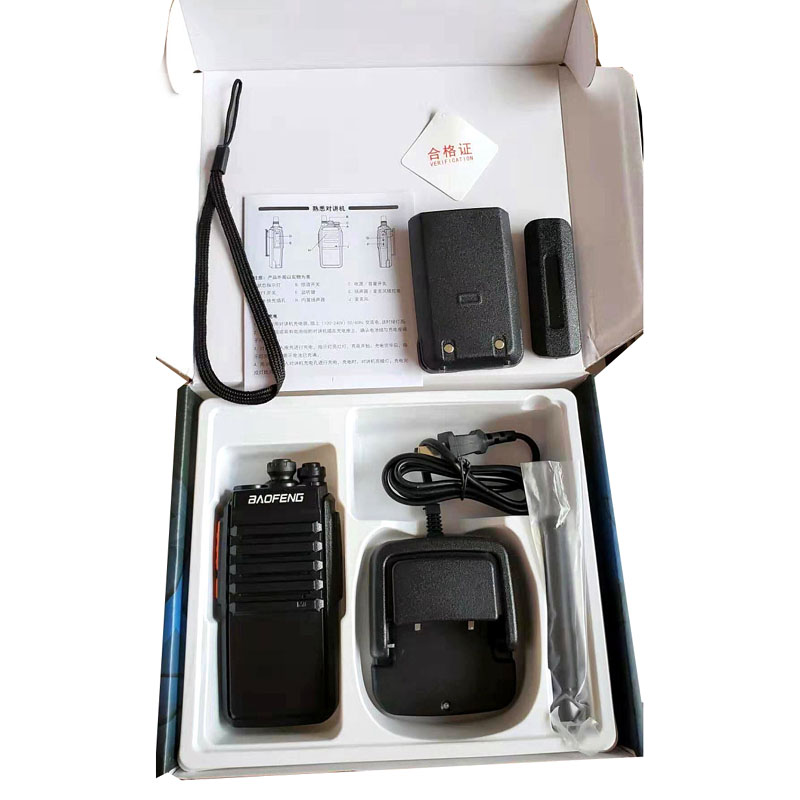

Package Included:
1x BAOFENG E50 radio
1x Battery
1x belt clip
1x Dock charger
1x Antenna
